Multi-layer Co-extruded Film

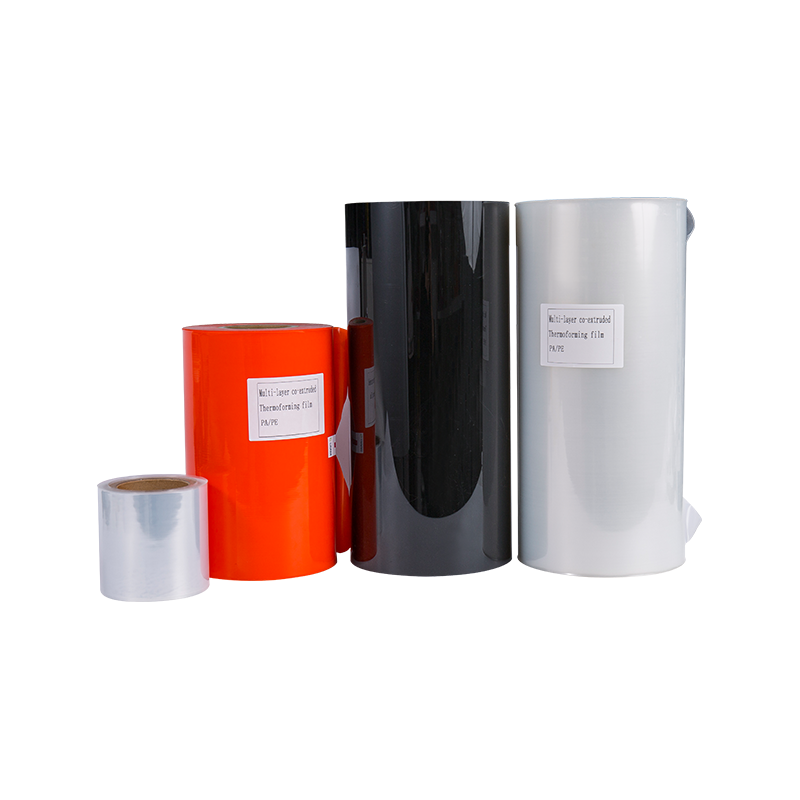

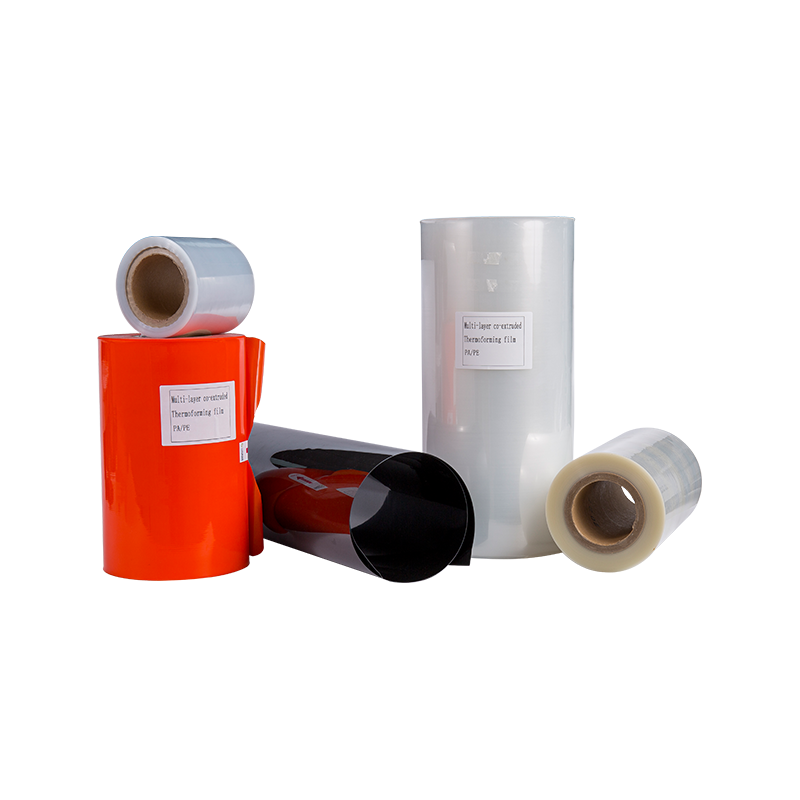

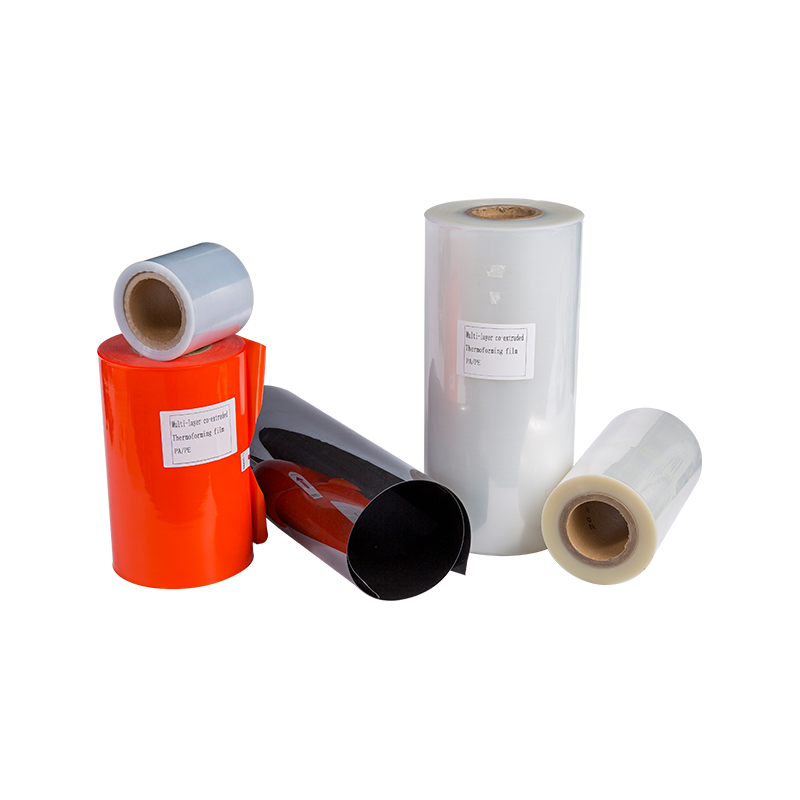

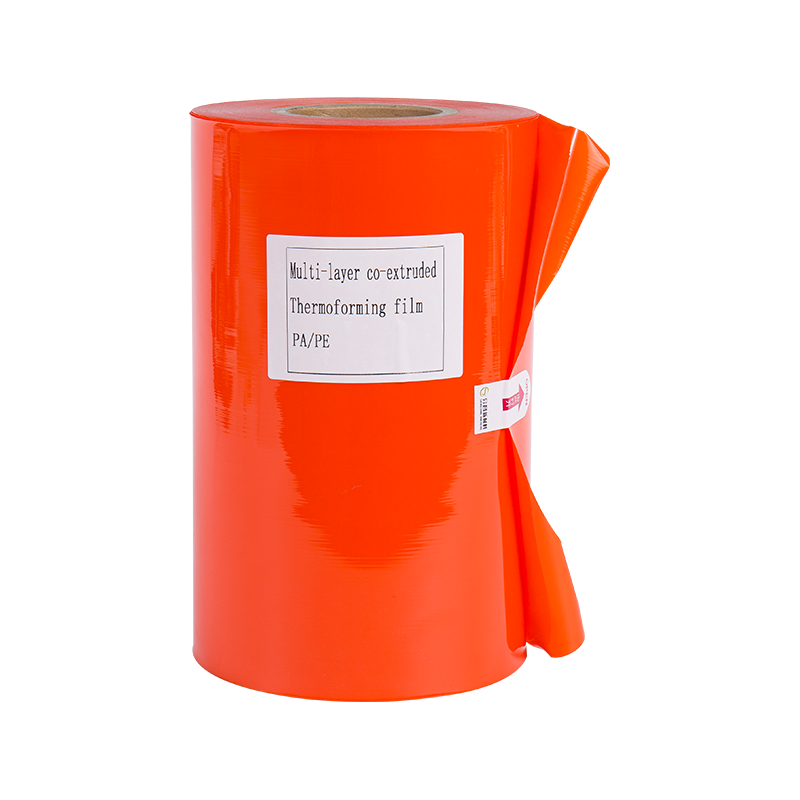

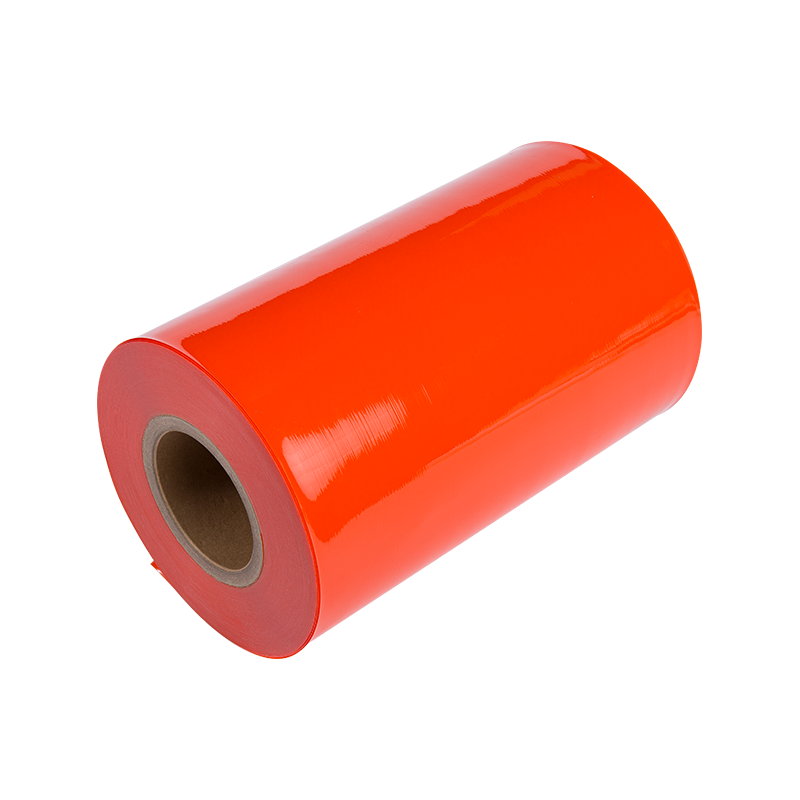

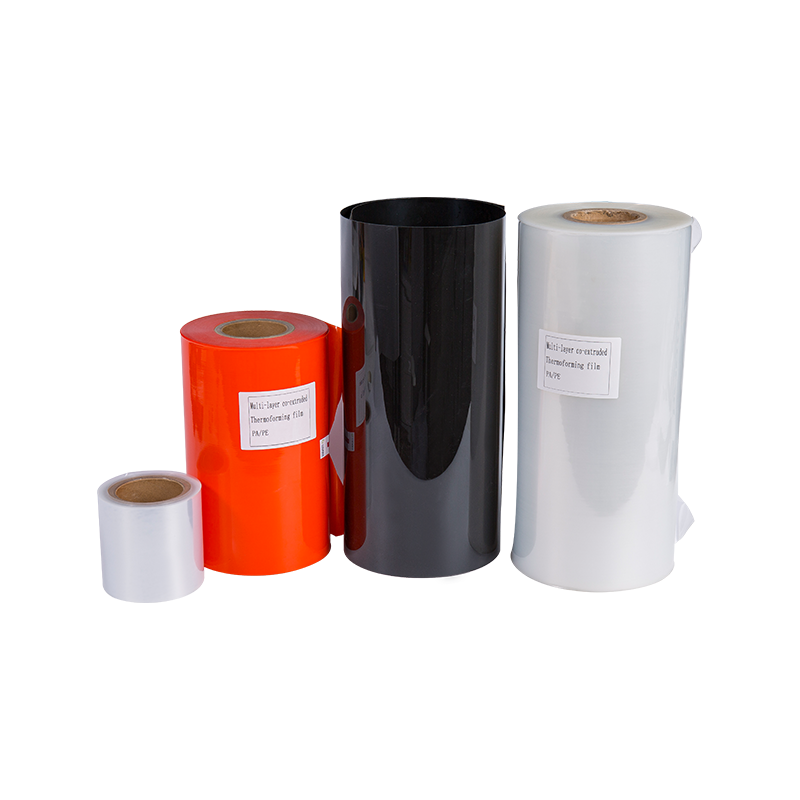

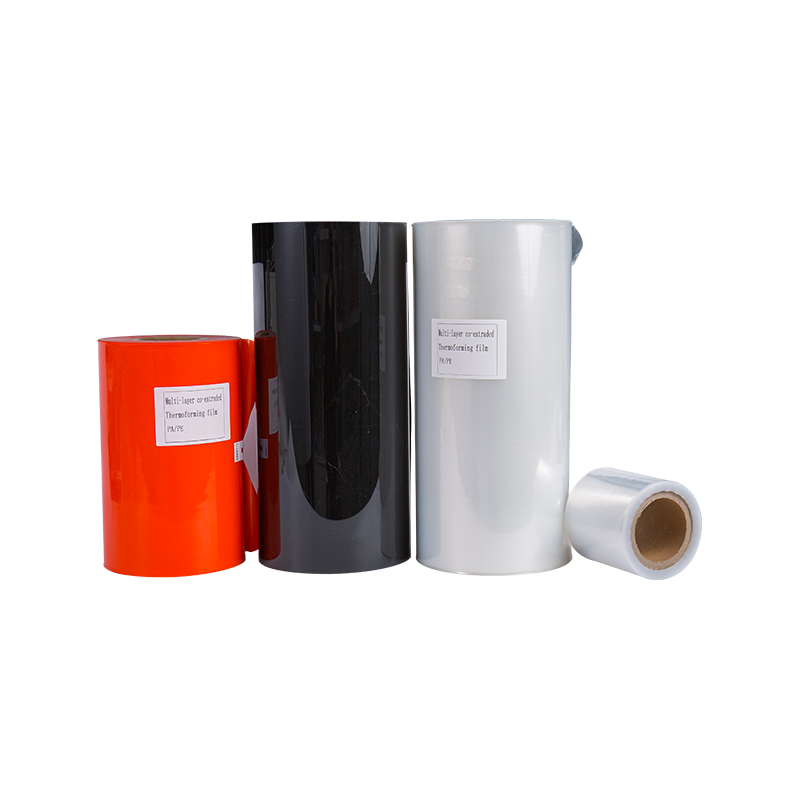

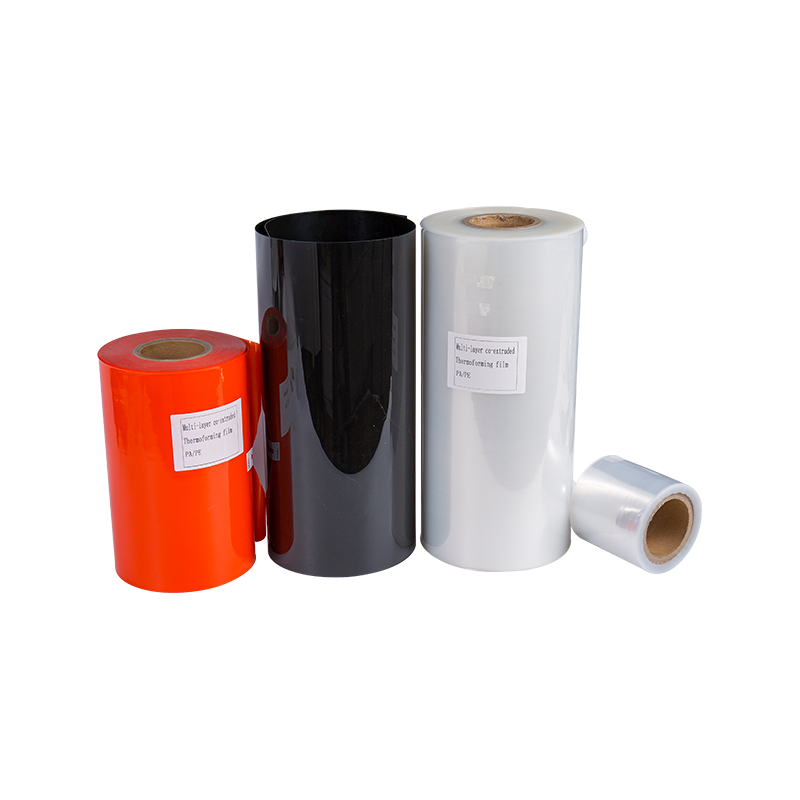

7-11 layers of PA/PE General Barrier Thermoforming Film

Product Introduction

Stretch co-extrusion film is superior to ordinary stretch film in terms of tensile properties, self-adhesion, puncture resistance, etc. by virtue of multi-layer co-extrusion technology. It is suitable for heavy, high-value or automated packaging needs.
The main components of co-extruded stretch film are 7-11 layers of PA/PE. It is widely used in packaging frozen foods and seafood. It is generally transparent, but can also be made into other colors such as red or black.

Contact Us


Product parameters

Structure

Nylon/Tie/Nylon/Tie/PE/PE/PE

Thickness

Customized

Width Deviation

+4,-2

Breaking Load(MD),N:

+/-6%

Breaking Load(TD),N:

>=30 N

Heat sealing strength,N/15mm

>=20 N

Peel Strength, N/15mm: >=6N

>=6 N

Water Vapor Permeance: g/（m 2·24h）

<=6

Oxygen Transmission Rate, cm 3/（m 2·24h·0.1MPa）

<=220

Total migration volume （a），mg/dm 2:

<=10

Potassium permanganate consumption: mg/kg:

<=10

Heavy Metal(based on Pb) mg/kg:

<=1
